- It is compatible with various operating systems, including for Win 10 11, Linux and Openwrt,
- IEEE Standard: 802.11 a/b/g/n/ac/ax compliant
- Bandwidth : Support 20/40MHz bandwidth in G-band, and 20/40/80/160MHz bandwidth in A-band
- PHY rate: G-band 2T2R + A-band 3T3R 2ss, dual-band dual concurrent (DBDC) with PHY rate up to 3000Mbps
- Support MU-MIMO TX/RX
- Support MU-OFDMA TX/RX
- Support STBC, LDPC, TX Beamformer and RX Beamformer
- Modes: greenfield, mixed mode, legacy modes
- Security: WFA WPA/WPA2/WPA3 personal, WPS2.0
- Intelligent power saving: QoS support of WFA WMM, WMM PS
- 32-bit RISC MCU for Wi-Fi protocols and Wi-Fi offload
- Data Storage: Embedded SRAM/ROM
- UART interface with hardware flow control
- Programmable and multiplexed GPIO pins
- Fully adherent: PCIe device fully compliant to PCIe v2.1 specification
- Integrate 4Kbit efuse to store device specific information and calibration data

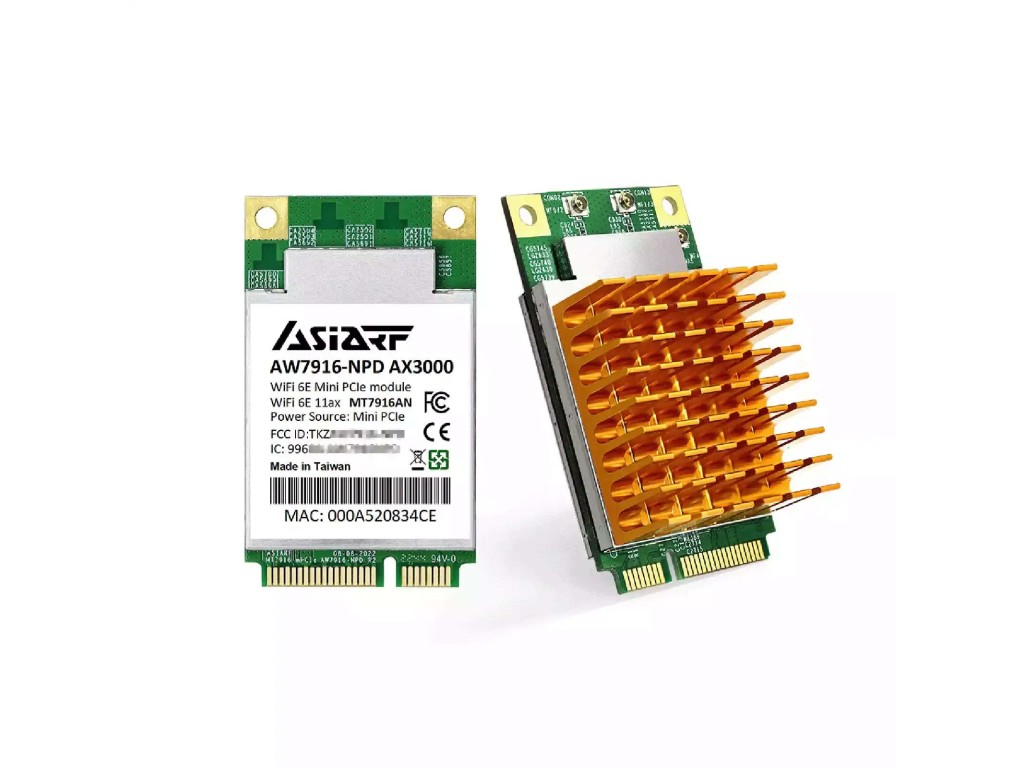

The AW7916-NPD Wi-Fi 6E AX3000 Mini PCIe Module is like a turbocharger for your Wi-Fi setup. It supports the super-fast Wi-Fi 6E 3000 and can handle three bands at once and DBDC. It’s powered by the powerful Mediatek MT7916AN chipset, so you know it means business. With blazing-fast speeds of up to 3Gbps, this module takes your wireless connectivity to a whole new level. It’s got your back whether you’re on the 5GHz or 6GHz band with a whopping 160MHz of bandwidth, and it even handles the 2.4GHz band with 40MHz. Plus, there’s an extra antenna to make sure your download speeds are top-notch.
Specification
AW7916-NPD Wi-Fi 6E Mini PCIe Module
- Brand: Mikrotik
- Product Code: AW7916-NPD
- Availability: In Stock
-
$50.00
